Catalogue

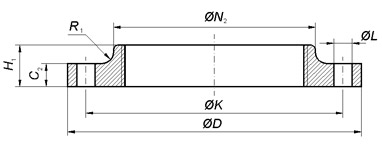

Dimensions of flanges EN 1092-1 Threaded type 13 pn 16 with plate surface and three rules for gasket tightness Cylindrical Gas Thread
( ex 2254 )
Connection dimensions
DN
GAS
D i a m e t e r s
Thickness
Total
Diameter
Radius
Net
Outside
bolt
bolt
Bolts
thickness
of the
weight
circle
holes
Nr
Type
neck
D
K
L
C2
H1
d1
R1
Kg

  * Measure 2.1/2" can be supplied with 8 holes
  * Measure 3" can be supplied with 4 holes

15
1/2
95
65
14
4
M12
16
22
35
4
0,7
20
3/4
105
75
14
4
M12
18
26
45
4
1,01
25
1
115
85
14
4
M12
18
28
52
4
1,21
32
1.1/4
140
100
18
4
M16
18
30
60
6
1,76
40
1.1/2
150
110
18
4
M16
18
32
70
6
2,04
50
2
165
125
18
4
M16
18
28
84
5
2,85
65
2.1/2
185
145
18
4;8
M16
18
32
104
6
3,53
80
3
200
160
18
8
M16
20
34
118
6
4,24
100
4
220
180
18
8
M16
20
40
140
8
4,9
125
5
250
210
18
8
M16
22
44
168
8
6,63
150
6
285
240
22
8
M20
22
44
195
10
8,49
